Torsion Springs - Part number Febrotec: 0T032-360-234

[ T032-360-234 | LT-028E-1LS | TO-5054LS | T032360234 | OT032-360-234 ]
Torsion Springs
Wire ø d 0.81 [mm]
Outer ø Da 9.7 [mm]
Max. Torque Md 92.7 [Nmm]
Max. Torsion alpha 306.1 [°]
Max. Mandrel ø M/S 5.95 [mm]
Leg Length E 25.4 [mm]
Active Coils n 8.5
Leg Type 4
Direction 360°
Material Code 1.4310
Direction of Helix rechts/right
Amount Price €/Piece
1 3.3000 EUR
10 2.6400 EUR
100 1.2500 EUR
500 0.4600 EUR
1000 0.3700 EUR
10000 0.2100 EUR
Delivery time Stock quantity
Immediately 24
7 Days 42
28 Days 165
Total 231
Further parts on request

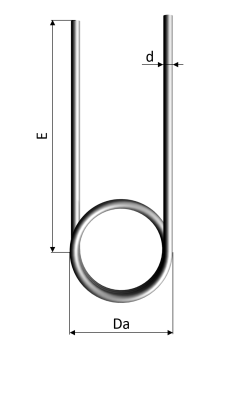

CAD preview
Download CAD
