Torsion Springs - Part number Febrotec: 0T012-270-109

[ T012-270-109 | LT-014A-2LS | TO-5008LS | T012270109 | OT012-270-109 ]
Torsion Springs

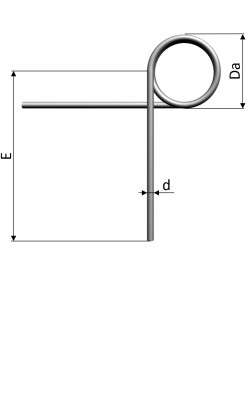

Wire ø d 0.3 [mm]
Outer ø Da 4.32 [mm]
Max. Torque Md 5.31 [Nmm]
Max. Torsion alpha 235.4 [°]
Max. Mandrel ø M/S 2.77 [mm]
Leg Length E 12.7 [mm]
Active Coils n 4.75
Leg Type 3
Direction 270°
Material Code 1.4310
Direction of Helix rechts/right
Amount Price €/Piece
1 2.5800 EUR
10 2.0600 EUR
100 1.2900 EUR
500 0.4900 EUR
1000 0.3900 EUR
10000 0.1200 EUR
Delivery time Stock quantity
Immediately 2
7 Days 327
28 Days 178
Total 507
Further parts on request

CAD preview
Download CAD
