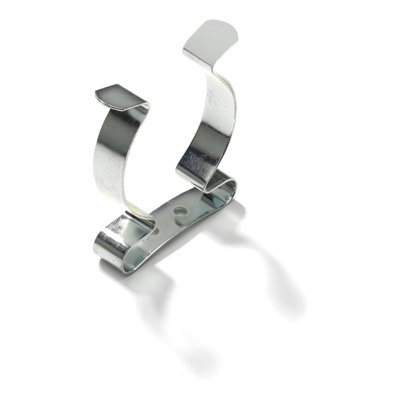

Spring Clips (Spring Clamps) - Part number Febrotec: 80.037

Spring Clips (Spring Clamps)
Type 1
Clamping ø from 10 [mm]
Clamping ø to 12 [mm]
Height h 20 [mm]
Material Depth b 6.5 [mm]
Bore ø 2.4 [mm]
Number of Holes 1
Material Code 1.1200
Weight 1.200 [g]
Surface verzinkt/zinc plated
Basis
Clamping Width [mm]
Basis to Center 9 [mm]
Amount Price €/Piece
1 0.2118 EUR
Delivery time Stock quantity
Immediately 22517
7 Days 6689
28 Days 3058
Total 32264
Further parts on request

CAD preview
Download CAD
