Retaining Pins (like DIN 11024) - Part number Febrotec: 89.106

Retaining Pins (like DIN 11024)

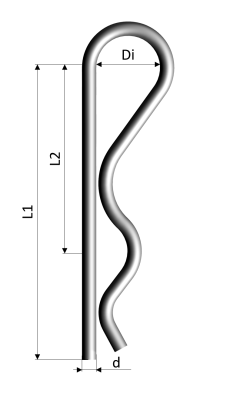

Overall Length L1 145 [mm]
Length L2 75 [mm]
Wire Diameter d 7 [mm]
Inside ø Di 38 [mm]
For Shafts from 32 [mm]
For Shafts up to 38 [mm]
Material 1.1200
Surface verzinkt/zinc plated
Amount Price €/Piece
1 3.2642 EUR
Delivery time Stock quantity
Immediately 9
Total 9
Further parts on request
