Gas Struts - Part number Febrotec: 0GS-N04EAD0070

[ N04EAD0070 | OGS-N04EAD0070 ]
Gas Struts

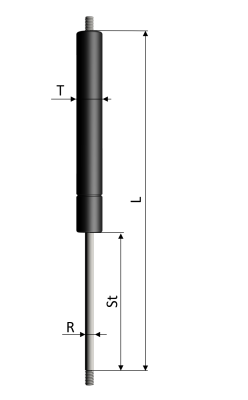

Rod ø R 4 [mm]
Tube ø T 12 [mm]
Length L 200 [mm]
Stroke St 80 [mm]
Recom. Min. Stroke Stmin 20 [mm]
Recom. Max. Stroke Stmax 67.5 [mm]
Force F1 70 [N]
Valve No
Material Code N-Series (Nitrider)
Mounting Thread M 4 [mm]
Load Ratio LR 1.2 [F1xLR=F2]
Weight M 55.700 [g]
Amount Price €/Piece
1 30.3700 EUR
11 27.3200 EUR
26 24.2900 EUR
51 15.3100 EUR
Delivery time Stock quantity
Immediately 130
14 Days 158
28 Days 44
Total 332
Further parts on request
