  1. Products
  2. Disc Springs
  3. EN 16983 (DIN 2093) & Belleville Disc Springs
  4. 0S4201E

EN 16983 (DIN 2093) & Belleville Disc Springs - Part number Febrotec: 0S4201E

[ S4201E | 6x3,2x0,3-rostfrei | S4201S/S | OS4201E ]

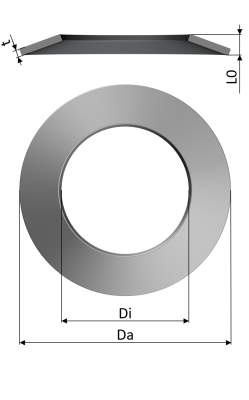

EN 16983 (DIN 2093) & Belleville Disc Springs
Outer ø Da 6 [mm]
Inner ø Di 3.2 [mm]
Thickness t 0.3 [mm]
Unloaded Length L0 0.45 [mm]
Loaded Length L1 0.34 [mm]
Force at Length L1 F1 110 [N]
Standard ~ EN16983(2093)
Disc Spring Group
Material Code 1.4310
Weight 0.043 [g]
Amount Price €/Piece
1 0.3000 EUR
Delivery time Stock quantity
Immediately 30422
7 Days 711
28 Days 8950
35 Days 264970
Total 305053
Further parts on request

CAD preview
Download CAD
Go back to overview
