Clover®Dome Spring Washers - Part number Febrotec: 0BC0375-018-S

[ BC0375-018-S | BC0375018S | OBC0375-018-S ]
Clover®Dome Spring Washers

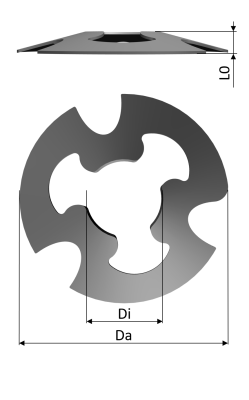

Outer ø Da 9.53 [mm]
Inner ø Di 4.95 [mm]
Thickness t 0.46 [mm]
Unloaded Length L0 0.99 [mm]
Loaded Length L1 0.59 [mm]
Force at L1 F1 182.85 [N]
Force Max. at Flat Fplan 285 [N]
Material Code 1.4568 (17-7 PH)
Amount Price €/Piece
1 15.9300 EUR
2 13.2700 EUR
6 11.5000 EUR
11 10.6200 EUR
26 9.7300 EUR
51 7.0700 EUR
100 4.4500 EUR
500 2.1300 EUR
1000 1.2400 EUR
Delivery time Stock quantity
Immediately 52
7 Days 508
Total 560
Further parts on request
