Conical Springs - Part number Febrotec: 0A360-029-025

[ A360-029-025 | TA-7000S | A360029025 | OA360-029-025 ]

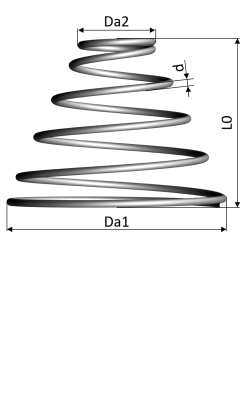

Conical Springs
Big Outer ø Da1 9.14 [mm]
Small Outer ø Da2 3.18 [mm]
Wire ø d 0.74 [mm]
Unloaded Length L0 6.35 [mm]
Force at 0,5 Lo F1 15.35 [N]
Block Length Lc 1.48 [mm]
Force at Block Length Fc 23.53 [N]
Spring Rate c 4.830 [N/mm]
Material 1.4310
Weight 0.322 [g]
Amount Price €/Piece
1 6.7900 EUR
10 6.2200 EUR
25 5.4100 EUR
50 4.9600 EUR
100 4.3000 EUR
Delivery time Stock quantity
Immediately 3046
7 Days 592
Total 3638
Further parts on request

CAD preview
Download CAD
