Compression Springs - Part number Febrotec: 0X-RDF1003

[ 0,1x0,5x2,7xA2 | RDF-1003 | OX-RDF1003 ]
Compression Springs

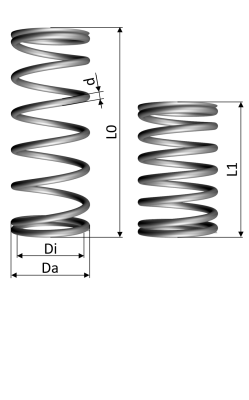

Outerø Da 0.6 [mm]
Innerø Di 0.4 [mm]
Wireø d 0.1 [mm]
Length L0 2.7 [mm]
Loaded Length L1 1.72 [mm]
Force at L1 F1 0.55 [N]
Spring Rate c 0.560 [N/mm]
Block Length Lc 1.6 [mm]
Material Code 1.4310
Ends angelegt / squared
Weight 0.0014 [g]
Amount Price €/Piece
1 3.5600 EUR
6 3.0000 EUR
11 1.9400 EUR
26 1.5800 EUR
51 1.4300 EUR
100 1.0900 EUR
Delivery time Stock quantity
Immediately 99
7 Days 1
Total 100
Further parts on request
