Torsion Springs

Part Number Wire ø Outer ø Max. Torque Max. Torsion Max. Mandrel ø Leg Length Active Coils Leg Type Direction Material Code Stock
d Da Md alpha M/S E n Available
[mm] [mm] [Nmm] [°] [mm] [mm]
TotalImmediately
0T012-090-055 0.3 2.36 5.31 57.2 1.4 9.52 2.25 1 90° 1.4310
248 108
Details
0T012-090-055L 0.3 2.36 5.31 57.2 1.4 9.52 2.25 1 90° 1.4310
453 47
Details
0T012-180-067 0.3 2.77 5.31 152.3 1.7 9.52 5 2 180° 1.4310
6 6
Details
0T012-180-067L 0.3 2.77 5.31 152.3 1.7 9.52 5 2 180° 1.4310
563 188
Details
0T012-180-109 0.3 4.22 5.31 145 2.77 12.7 3 2 180° 1.4310
1529 437
Details
0T012-180-109L 0.3 4.22 5.31 145 2.77 12.7 3 2 180° 1.4310
2304 1295
Details
0T012-270-062 0.3 2.59 5.31 247.1 1.57 9.52 8.75 3 270° 1.4310
584 0
Details
0T012-270-062L 0.3 2.59 5.31 247.1 1.57 9.52 8.75 3 270° 1.4310
1422 154
Details
0T012-270-109 0.3 4.32 5.31 235.4 2.77 12.7 4.75 3 270° 1.4310
921 17
Details
0T012-270-109L 0.3 4.32 5.31 235.4 2.77 12.7 4.75 3 270° 1.4310
623 26
Details
0T012-360-109 0.3 4.42 5.31 330.2 2.77 12.7 6.5 4 360° 1.4310
1275 9
Details
0T012-360-109L 0.3 4.42 5.31 330.2 2.77 12.7 6.5 4 360° 1.4310
613 37
Details
entries per page <
1 2 30
>


Our torsion springs exert a force in the opposite direction of the applied force. These springs provide even tension, alongside smooth and frictionless motion and are frequently used in the automotive industry in vehicle suspension systems or different types of door hinges and in complex medical equipment like hospital beds.

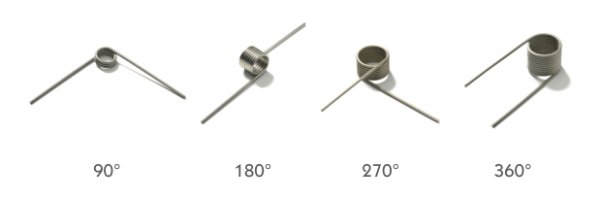

Torsion Spring Types

  • Standard – straight torsion ends
  • Right-hand and left-hand wind
  • Special end-positions are finished on request



Torsion Spring Material

  • 1.4310 stainless steel



Torsion Spring Applications

  • Door Hinges
  • Mechanical Engineering
  • Precision Engineering
  • Consumer Goods
  • Medical Equipment
