Part Number Wire ø Length Tensile Strength Material Code Name Stock
d L Rm Available
[mm] [mm] [N/mm²]
TotalImmediately
0FD0020-G1000-A2 0.2 1000 >2200 1.4310 V2A
1524 1524
Details
0FD0030-G1000-A2 0.3 1000 >2100 1.4310 V2A
1194 1194
Details
0FD0036-G1000-A2 0.36 1000 >2100 1.4310 V2A
905 905
Details
0FD0040-G1000-A2 0.4 1000 >2100 1.4310 V2A
1755 1755
Details
0FD0040-G1000-CD 0.4 1000 >2560 1.1200 SH/DH
963 963
Details
0FD0043-G1000-A2 0.43 1000 >2100 1.4310 V2A
1140 1140
Details
0FD0050-G1000-A2 0.5 1000 >2000 1.4310 V2A
536 536
Details
0FD0050-G1000-CD 0.5 1000 >2480 1.1200 SH/DH
922 922
Details
0FD0060-G1000-A2 0.6 1000 >2000 1.4310 V2A
282 282
Details
0FD0060-G1000-A4 0.6 1000 >1850 1.4571 V4A
162 162
Details
0FD0060-G1000-CD 0.6 1000 >2410 1.1200 SH/DH
189 189
Details
0FD0070-G1000-A2 0.7 1000 >2000 1.4310 V2A
177 177
Details
entries per page <
1 2 8
>

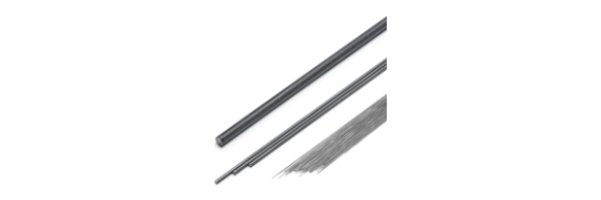

We supply straightened steel wire bars in music wire (spring steel) and stainless steel in different sizes for experimental, development and prototype work.

Steel Wire Bars Tempering Temperature

  • 1.1200 - music wire (spring steel) - 270°C - 0,5 - hour air cooling
  • 1.4310 - stainless steel - 380°C - 0,5 - hour air cooling
  • 1.4568/1.471 - stainless steel - 450°C - 1,0 - hour air cooling
