Part Number Thickness Width Total Length Min. Working Length Max. Working Length Inner ø Drum ø Force Material Life Cycles Stock
t b L0 L1 Lmax Di Do F Available
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [N] [n]
TotalImmediately
0CF012-0038 0.076 4.75 305 9.54 269 5.33 6.396 1.7 1.4310 4000
12 0
Details
0CF015-0049 0.1 4.75 381 13.17 333 7.36 8.832 2.2 1.4310 4000
90 0
Details
0CF015-0050 0.1 6.35 381 15.49 305 8.64 10.368 2.2 1.4310 4000
671 0
Details
0CF015-0065 0.1 6.35 381 11.36 333 6.35 7.62 2.9 1.4310 4000
169 0
Details
0CF015-0083 0.1 7.9 381 12.72 333 7.11 8.532 3.7 1.4310 4000
98 0
Details
0CF018-0023 0.1 6.35 457 24.3 383 13.5 16.2 1.03 1.4310 25000
10 0
Details
0CF017-0103 0.127 7.9 432 16.82 372 9.4 11.28 4.6 1.4310 4000
261 0
Details
0CF018-0036 0.127 7.9 457 31.5 363 17.5 21 1.61 1.4310 25000
86 0
Details
0CF025-0043 0.127 9.5 635 29.7 541 16.5 19.8 1.92 1.4310 25000
116 0
Details
0CF018-0075 0.13 7.9 457 19.05 381 10.67 12.804 3.34 1.4310 4000
408 0
Details
0CF021-0025 0.15 9.4 533 51.56 305 28.7 34.44 1.11 1.4310 40000
0 0
Details
0CF022-0112 0.15 9.4 559 23.37 457 12.95 15.54 4.98 1.4310 4000
235 0
Details
entries per page <
1 2 5
>

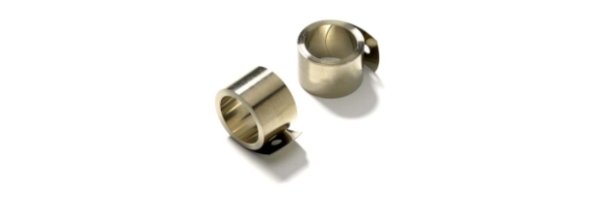

Our constant force springs are a special type of extension spring. The constant force spring is well suited to long extensions with no load build up.



Material Constant Force Spring Material

  • 1.4310 stainless steel
