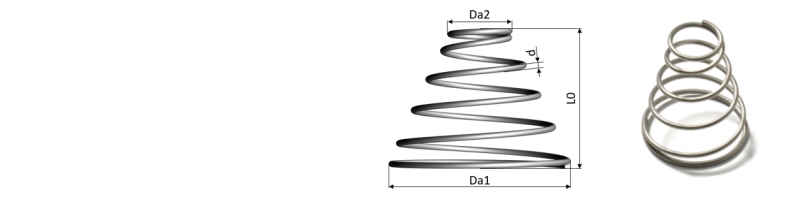

Part Number Big Outer ø Small Outer ø Wire ø Unloaded Length Force at 0,5 Lo Block Length Force at Block Length Spring Rate Material Stock
Da1 Da2 d L0 F1 Lc Fc c Available
[mm] [mm] [mm] [mm] [N] [mm] [N] [N/mm]
TotalImmediately
0A360-029-025 9.14 3.18 0.74 6.35 15.35 1.48 23.53 4.830 1.4310
5932 4302
Details
0A420-029-025 10.67 5.54 0.74 6.35 9.07 1.48 13.97 2.870 1.4310
2514 2497
Details
0A420-029-031 10.67 4.75 0.74 7.92 10.05 1.48 16.37 2.540 1.4310
3935 3887
Details
0A420-029-037 10.67 3.96 0.74 9.53 11.12 1.48 18.82 2.340 1.4310
967 483
Details
0A420-032-025 10.67 4.75 0.81 6.35 14.19 1.62 21.08 4.460 1.4310
395 5
Details
0A420-032-031 10.67 3.96 0.81 7.92 16.15 1.62 25.66 4.070 1.4310
6258 6258
Details
0A420-035-025 10.67 4.75 0.89 6.35 22.64 1.78 32.6 7.140 1.4310
447 447
Details
0A480-029-031 12.19 7.14 0.74 7.92 6.81 1.48 11.08 1.710 1.4310
1732 1181
Details
0A480-029-037 12.19 6.35 0.74 9.53 7.07 1.48 12.01 1.490 1.4310
1994 172
Details
0A480-029-050 12.19 5.54 0.74 12.7 8.58 1.48 15.12 1.350 1.4310
693 58
Details
0A480-029-062 12.19 4.75 0.74 15.88 9.56 1.48 17.35 1.200 1.4310
86 84
Details
0A480-032-031 12.19 6.35 0.81 7.92 10.54 1.62 16.81 2.660 1.4310
0 0
Details
entries per page <
1 2 … 9
 >


Spring Rate

  • Each conical spring features a variable pitch to achieve a linear spring rate.



Conical Spring Materials

  • EN 10270-3 – 1.4310 stainless spring steel wire



Heat for Conical Springs

  • The maximum operating temperature is 250°C



Conical Spring Applications

  • Battery springs
