Die Springs DIN & ISO - Part number Febrotec: 0ST50380
[ 103-106 | M101 | ST50380 | OST50380 ]

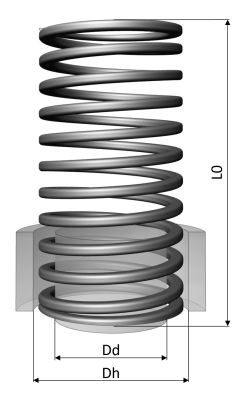

| Hole ø | Dh | 9.53 [mm] |
| Shaft ø | Dd | 4.78 [mm] |
| Unloaded Length | L0 | 38.1 [mm] |
| Spring Rate | c | 7 [N/mm] |
| Deflection | s1 (dyn) | 9.5 [mm] |
| Force at Deflection s1 | F1 (dyn) | 67 [N] |
| Maximum Deflection | sn (stat) | 15.2 [mm] |
| Force at Max. Defl. | Fn (stat) | 107 [N] |
| Type | Raymond NAAMS | |
| Colour Code | blau/blue | |
| Wire Height | h | 1 [mm] |
| Wire Width | b | 1.800 [mm] |
| Amount | Price €/Piece |
|---|---|
| 1 | 25.9000 EUR |
| 10 | 4.1800 EUR |
| 100 | 1.5600 EUR |
| 500 | 1.4800 EUR |
| 1000 | 1.4000 EUR |
| 10000 | 1.3300 EUR |
| Delivery time | Stock quantity |
|---|---|
| 7 Days | 170 |
| Total | 170 |
| Further parts | on request |
CAD preview
Download CAD
