Safety Rings for Bores

Part Number Wire ø Outer ø Gap Bore ø Material Code Stock
d Da e a Available
[mm] [mm] [mm] [mm]
TotalImmediately
0BV200 0.8 7.9 4 7 1.1200
2680 1448
Details
0BV200E 0.8 7.9 4 7 1.4310
10662 402
Details
0BV201 0.8 8.9 4 8 1.1200
169 169
Details
0BV201E 0.8 8.9 4 8 1.4310
11746 131
Details
0BV202 0.8 10.9 4 10 1.1200
51 51
Details
0BV202E 0.8 10.9 4 10 1.4310
13 13
Details
0BV203 1 13.2 6 12 1.1200
12271 599
Details
0BV203E 1 13.2 6 12 1.4310
1505 5
Details
0BV204 1 15.2 6 14 1.1200
27 27
Details
0BV204E 1 15.2 6 14 1.4310
1977 3
Details
0BV205 1.6 17.8 8 16 1.1200
0 0
Details
0BV205E 1.6 17.8 8 16 1.4310
843 571
Details
entries per page <
1 2 7
>

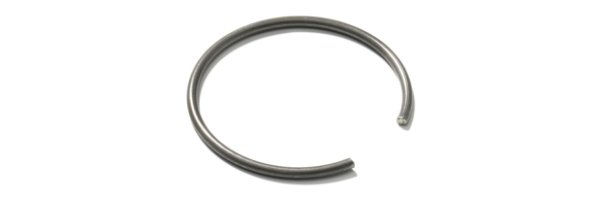

Our safety ring for bores fixes components in a bore. The ring is mounted by snapping the circlip into the bore and into a groove. The ring transfers large axial loads from the element of the device which exerts the force and the groove in which the ring is assembled.
