Safety Pins (Fokker Pins)

Safety pins / Fokker Pins to secure attached components | Febrotec
Part Number Total Length Safety Length Inner ø Wire ø Surface Material Code Stock
L1 L2 Di d Available
[mm} [mm} [mm} [mm}
TotalImmediately
89.300 70 42 14 1.63 0 1.1231
39 39
Details
89.300S/S 70 42 14 1.63 0 1.4310
5 5
Details
89.301 76 42 22 2.03 0 1.1231
1074 189
Details
89.301S/S 76 42 22 2.03 0 1.4310
57 57
Details
89.302 98 57 24 2.95 0 1.1231
1010 68
Details
89.302S/S 98 57 24 2.95 0 1.4310
248 248
Details
89.303 122 63 32 2.95 0 1.1231
615 113
Details
89.303S/S 122 63 32 2.95 0 1.4310
21 21
Details
89.304 140 76 35 3.65 0 1.1231
297 162
Details
89.304S/S 140 76 35 3.65 0 1.4310
198 198
Details
89.305 165 95 38 4.47 0 1.1231
380 48
Details
89.306S/S 165 95 38 4.47 0 1.4310
0 0
Details
entries per page <
1 2
>

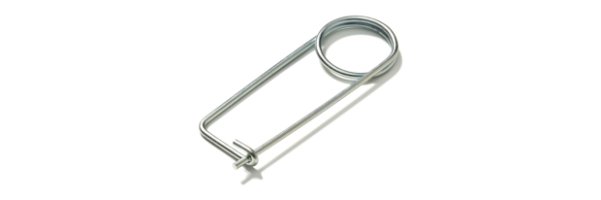

Our safety springs (Fokker pins) hold attached components together. The safety spring is guided and locked onto a shaft or in a bore when installed. The locking mechanism provides additional safety compared to normal shaft locking devices.
